Yeah, we do that  thumbs up

Stock - http://www.vintagewarehouse.com/store/product_info.php?products_id=656
or
Dropped - http://www.vintagewarehouse.com/store/product_info.php?products_id=657

If you want to do it yourself, we have the parts to help you out.

King Pins in German or Brazilian - http://www.vintagewarehouse.com/store/product_info.php?products_id=368

Link Pins in German or Brazilian - http://www.vintagewarehouse.com/store/product_info.php?products_id=368
Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #1 on: February 05, 2013, 09:45:10 pm »
ReplyReply

What we can't sell is the sweet OG tools and the knowledge, but here's a quick break down of a stock spindle being re-assembled.

Start with a good cleaning and coat of paint



I recently scored this drift / reamer tool. For re-assembly, it's AWESOME!








Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #2 on: February 05, 2013, 09:49:25 pm »
ReplyReply

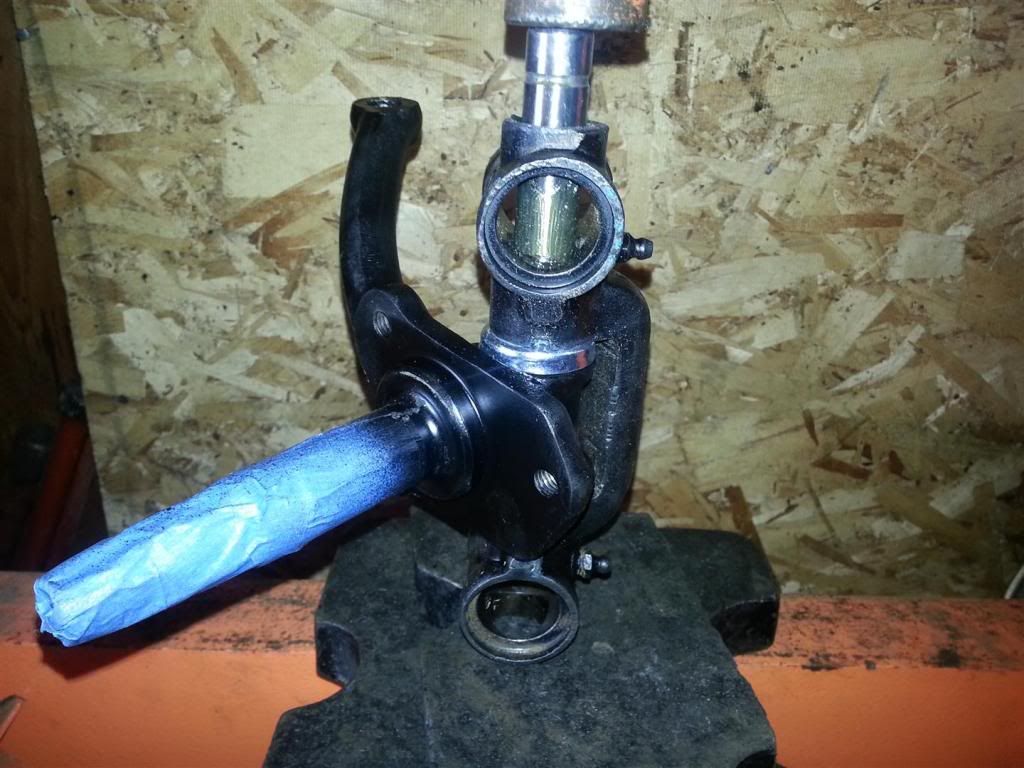

Press in your bushings X4









Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #3 on: February 05, 2013, 09:52:46 pm »
ReplyReply

Then ream X4

First one side





Then the other



Use a file to put the groove into the 2 upper bushings



Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #4 on: February 05, 2013, 09:55:18 pm »
ReplyReply

Replace the thrust washer, fiber washer, and cap and slide the spindle on to the carrier (two hand job no pics)

Press in your king pins - always use plenty of grease.

X2





I use an old king pin to drive the new one down into the bushing through the carrier.
Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #5 on: February 05, 2013, 09:59:55 pm »
ReplyReply

New link pin bushings X4

Not all tools are fancy.
For this I use a 1" deep socket to hold the spindle / carrier off the press and a mag wheel lug nut with washer to press in the bushing.

The socket also works as a stop once the bushing is in.





Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #6 on: February 05, 2013, 10:06:42 pm »
ReplyReply

Add link pins and shims.

Done!

Box them up and ship them out, or install on a customers beam / car.

Here's the chart for that too.



I use the Type 1 version of this, but a straight edge an ruler or calipers will work.



Logged
themacnut
LowBus Extrodinaire
*****
Offline Offline

Posts: 1924



« Reply #7 on: February 06, 2013, 07:52:20 am »
ReplyReply

Nice tools and know how.  Makes the "just send them to Greg" decision pretty easy.    thumbs up
Logged
mr. warehouse
Administrator
***
Offline Offline

Posts: 3895



WWW
« Reply #8 on: February 06, 2013, 11:49:17 am »
ReplyReply

Nice tools and know how.  Makes the "just send them to Greg" decision pretty easy.    thumbs up

Thanks.
